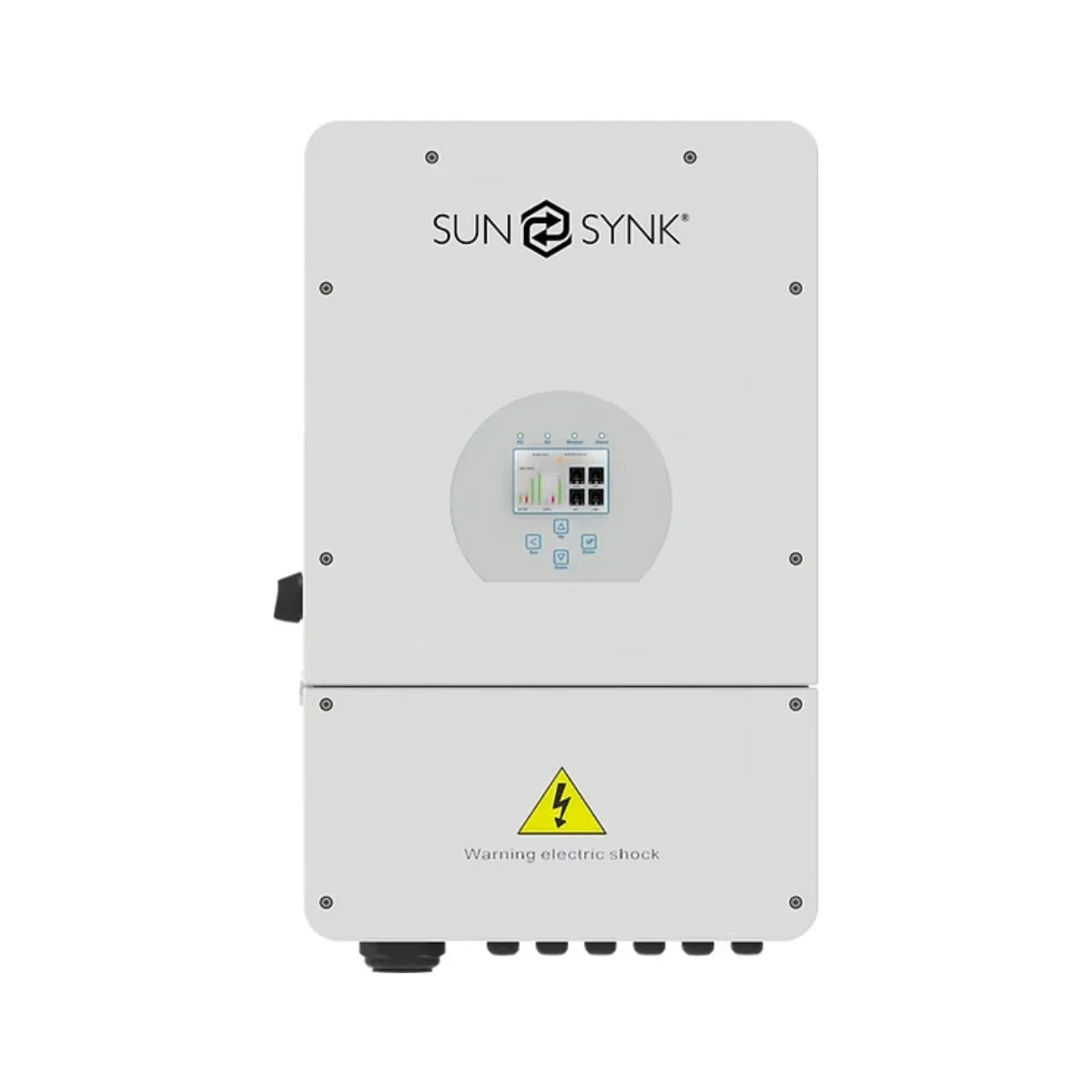

Sunsynk 16kW Hybrid Inverter 3 Phase

Sunsynk 16kW Hybrid Inverter 3 Phase

R 47,999.00 ZAR
R 42,999.00 ZAR R 47,999.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.
    \n
  • SUNSYNK 16kW Hybrid Inverter (3 Phase) – SUNSYNK MAX
    • \n
  • Model SUNSYNK MAX
    • \n
  • The Most Powerful Low-voltage Inverter In The World.
    • \n
  • Achieves a Maximum Output Power of 16kW & Battery Charge Current of 300A
    • \n
  • Manages Power-flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require.
    • \n
  • Colourful Touch LCD
    • \n
  • Storing energy from diesel generator supported.
    • \n
  • Wi-Fi & GSM monitoring supported.
    • \n
  • Equipped with Visual power flow screen.
    • \n
  • Parallel/multi invert function grid-tied & off-grid.
    • \n
  • Grid Type: Single-Phase.
    • \n
  • Protection Degree: IP65
    • \n
  • Noise Level: <30dB
    • \n
  • Maximum Charge & Discharge Current: 300A
    • \n
  • Battery Charging Strategy: Self-Adaptation to BMS
    • \n
  • Maximum DC Input Power: 18000W
    • \n
  • MPPT Range: 250-450V
    • \n
  • Start-up Voltage: 150V
    • \n
  • Maximum On-Grid AC Power: 16000W
    • \n
  • Maximum Off-Grid AC Power: 13000W
    • \n
  • AC Output Rated Current: 65A
    • \n
  • Maximum AC Current: 70A
    • \n
  • Frequency Range: 45-55Hz
    • \n
  • Voltage Range: 211-264V
    • \n
  • Maximum Efficiency: 97.60%
    • \n
  • MPPT Efficiency: 99.90%
    • \n
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
    • \n
  • Battery Voltage Range: 43-60V
    • \n
  • Communication with BMS: CAN/RS485
    • \n
  • Fan Cooling
    • \n
  • Operation Temperature: -25°C to 55°C
    • \n
  • Installation Type: Wall Mounted.
    • \n
  • Weight: 34.5Kg
    • \n
  • Dimensions (W x H x D): 422 x 702 x 281 mm
    • \n
  • Refer To Brochure For Detailed Product Specifications.
    • \n
  • Product might vary from depicted images.
    • \n
  • Graphics are for illustrative purposes only.
    • \n
  • 5 Year Limited Product Warranty.
    • \n
  • Free Delivery Nationwide – South Africa
    • \n
  • Recommended Solar Panel Configuration: \n
      \n
    • Min 5 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
      • \n
    • First MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
      • \n
    • Second MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
      • \n
    • Third MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
      • \n
    • Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
