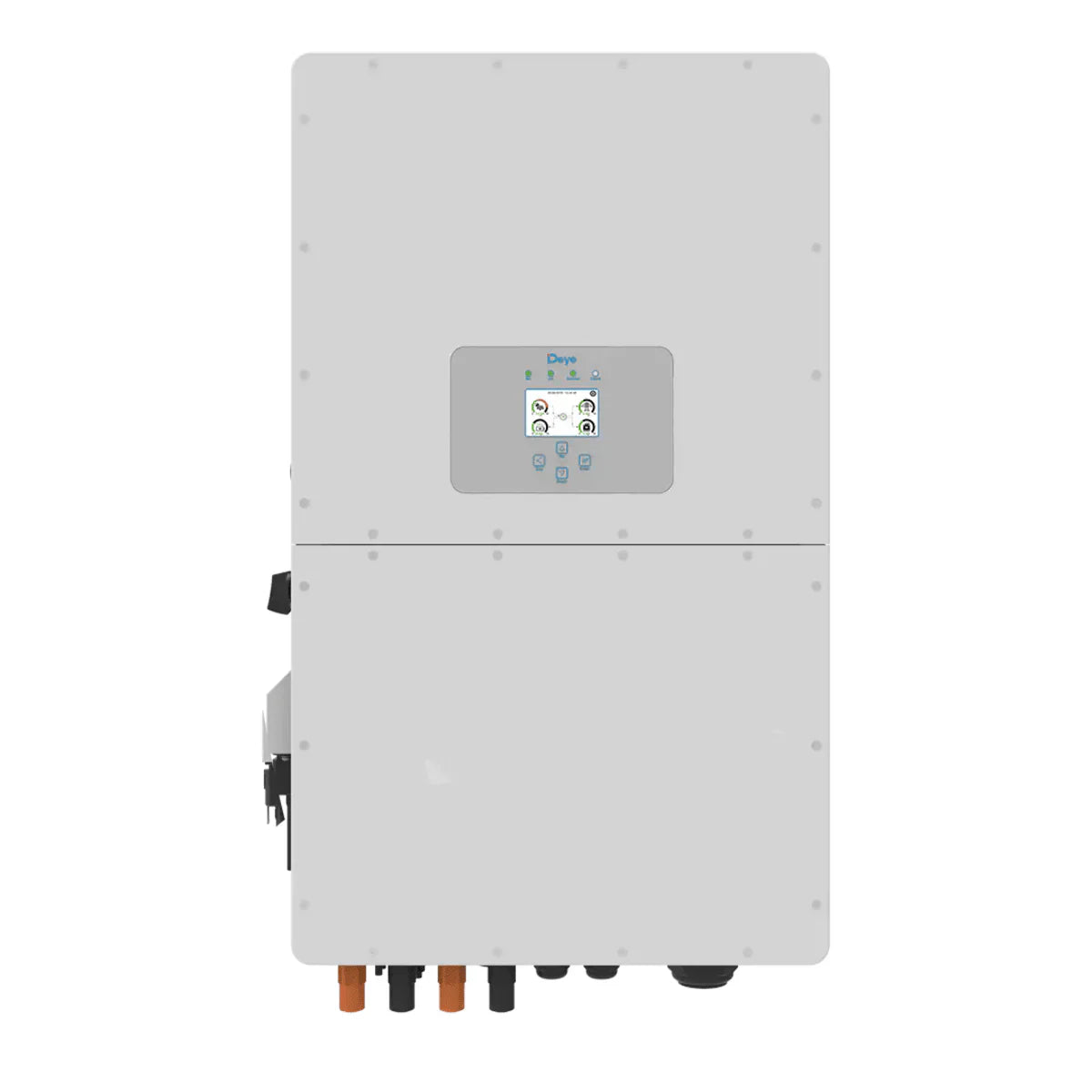

Deye 12kw Hybrid Inverter 3 Phase

Includes:  Wi-Fi Dongle + BMS Communication Cable \n \nHiger yields. \n

\n
• Improve self-consumption ratio up to 80%, reducing your electricity bill.
\n
• DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
\n
• Two MPPT design, Max. efficiency of 97.6%.
\n

\nUser-friendly. \n

\n
• LCD Touch screen and buttons, easy operation.
\n
• Compatible with lithium-ion battery and lead acid battery.
\n
• Web browser and mobile App monitoring supported.
\n

\nReliable. \n

\n
• PV lighting protection, Anti-islanding protection, Leakage current protection etc.
\n
• Support store energy from DG when needed, ensure the system working within 7*24H.
\n
• IP65 protection degree, adapt to indoor and outdoor using.
\n
• Automatically switch from on-grid to off-grid mode within 5ms.
\n
• Zero exporting function, fast reaction within 200ms in zero export mode.
\n

\nSmart. \n

\n
• Programmable charging and discharging schedule.
\n
• Both wind turbines and solar panels can be connected as DC input power.
\n
• Max. 16 units can be paralleled for higher system power.
\n
• Retrofitting of existing solar system to energy storage system.
\n

\nFeatures: \n

\n
• 100% unbalanced output, each phase Max. output up to 50% rated power.
\n
• 48V low voltage battery, transformer isolation design.
\n
• 6 time periods for battery charging/discharging.
\n
• Max. charging/discharging current of 240A.
\n
• Frequency droop control.
\n
• DC couple and AC couple to retrofit existing solar system.
\n
• Support storing energy from diesel generator
\n

\nBattery Input Data \n

\n
• Battery Type: Lead-acid or Li-lon
\n
• Battery Voltage Range (V): 40-60V
\n
• Max. Charging Current (A): 240A
\n
• Max. Discharging Current (A): 240A
\n
• Charging curve: 3 Stages/Equalization
\n
• External Temperature Sensor: Optional
\n
• Charging Strategy for Lithium Battery: Self-adaption to BMS
\n

\nPV String Input Data \n

\n
• Max. DC Input Power (W): 15600W.
\n
• PV input Voltage (V): 550V (150V-800V).
\n
• MPPT Range (V): 200-650V.
\n
• Start-up Voltage (V): 160V.
\n
• PV Input Current (A): 25A + 125.5A.
\n
• No. of MPPT Trackers: 2
\n
• No. of Strings Per MPPT Tracker: 2+1.
\n

\nAC Output Data \n

\n
• Rated AC Output and UPS Power (W): 12000W
\n
• Max AC Output Power (W): 13200W
\n
• Peak Power(off-grid): 2 times of rated power, 10 S.
\n
• AC Output Rated Current(A): 18A
\n
• Max.AC Current(A): 27A
\n
• Max Continuous AC Pass-through(A): 50A.
\n
• Output Frequency and Voltage: 50/60Hz; 230/400Vac (Three Phase)
\n
• Grid Type: Three Phase
\n
• Current Harmonic Distortion: THD<3% (Linear load<1.5%).
\n
