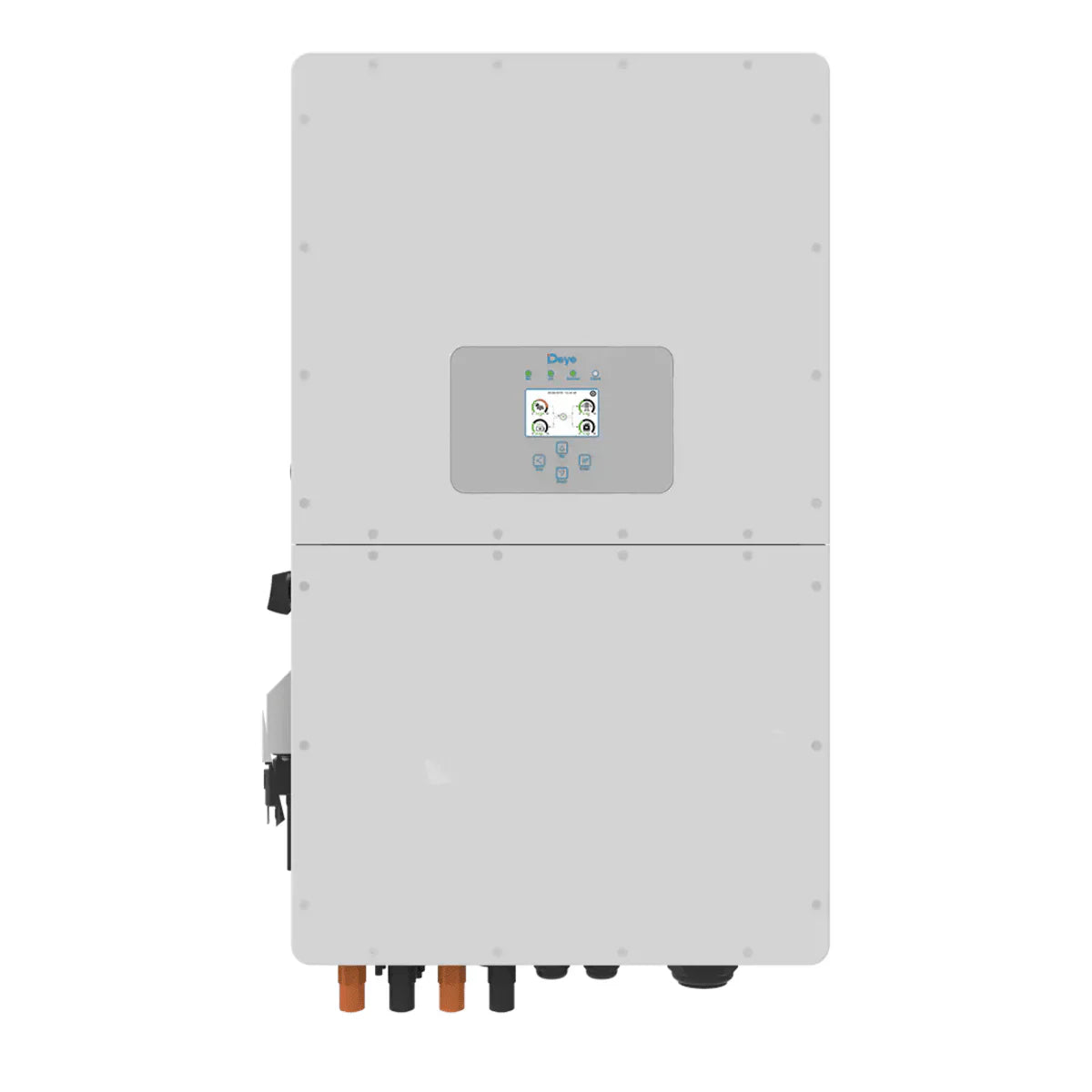

Deye 5kw Hybrid Inverter

Includes:  Wi-Fi Dongle + BMS Communication Cable \n \nHiger yields. \n

\n
• Improve self-consumption ratio up to 80%, reducing your electricity bill.
\n
• DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
\n
• Two MPPT design, Max. efficiency of 97.6%.
\n

\nUser-friendly. \n

\n
• LCD Touch screen and buttons, easy operation.
\n
• Compatible with lithium-ion battery and lead acid battery.
\n
• Web browser and mobile App monitoring supported.
\n

\nReliable. \n

\n
• PV lighting protection, Anti-islanding protection, Leakage current protection etc.
\n
• Support store energy from DG when needed, ensure the system working within 7*24H.
\n
• IP65 protection degree, adapt to indoor and outdoor using.
\n
• Automatically switch from on-grid to off-grid mode within 5ms.
\n
• Zero exporting function, fast reaction within 200ms in zero export mode.
\n

\nSmart. \n

\n
• Programmable charging and discharging schedule.
\n
• Both wind turbines and solar panels can be connected as DC input power.
\n
• Max. 16 units can be paralleled for higher system power.
\n
• Retrofitting of existing solar system to energy storage system.
\n

\nBattery Input Data \n

\n
• Battery Type: Lead-acid or Li-lon
\n
• Battery Voltage Range (V): 40-60V
\n
• Max. Charging Current (A): 120A
\n
• Max. Discharging Current (A): 120A
\n
• Charging curve: 3 Stages/Equalization
\n
• External Temperature Sensor: Optional
\n
• Charging Strategy for Lithium Battery: Self-adaption to BMS
\n

\nPV String Input Data \n

\n
• Max. DC Input Power (W): 6500W.
\n
• PV input Voltage (V): 370V (100V-500V).
\n
• MPPT Range (V): 125-425V.
\n
• Start-up Voltage (V): 150V.
\n
• PV Input Current (A): 11A + 11A.
\n
• No. of MPPT Trackers: 2
\n
• No. of Strings Per MPPT Tracker: 1+1.
\n

\nAC Output Data \n

\n
• Rated AC Output and UPS Power (W): 5000W
\n
• Max AC Output Power (W): 5500W
\n
• Peak Power(off-grid): 2 times of rated power, 10 S.
\n
• AC Output Rated Current(A): 21.7.4A
\n
• Max.AC Current(A): 25A
\n
• Max Continuous AC Pass-through(A): 35A.
\n
• Output Frequency and Voltage: 50Hz; 240Vac,
\n
• Grid Type: THD<3%(Linear load<1.5%).
\n
• Current Harmonic Distortion: THD<3% (Linear load<1.5%).
\n

\nEfficiency \n

\n
• Max. Efficiency: 97.60%
\n
• Euro Efficiency: 96.50%
\n
• MPPT Efficiency: 99.90%
\n

\nProtection \n

\n
• PV Arc Fault Detection: Integrated (Except European Type)
\n
• PV Input Lightning Protection: Integrated
\n
• Anti -islanding Protection: Integrated
\n
• PV String Input Reverse Polarity Protection: Integrated
\n
• Insulation Resistor Detection: Integrated
\n
• Residual Current Monitoring Unit: Integrated
\n
• Output over Current Protection: Integrated
\n
• Output Shorted Protection: Integrated
\n
• Output over Voltage Protection: Integrated
\n

\nCertifications and Standards \n

\n
• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
\n
• Safety Regulation: IEC62109-1, IEC62109-2
\n
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
\n

\nGeneral Data \n

\n
• Operating Temperature Range ( C ): -25—60 C , >45 C Derating
\n
• Cooling: Fan
\n
• Noise (dB): <30
\n
• Communication with BMS: RS485; CAN
\n
• Weight (kg): 20.5
\n
• Size (mm): 580 X 330 X 208mm
\n
• Protection Degree: IP65
\n
• Installation Style: Wall-mounted
\n
• Warranty: 5 years
