HUBBLE HV-204 High Voltage Battery Rack – 204V / 20.4KW (4 Packs of 16 Cell LiFePO4 Batteries)

  \n

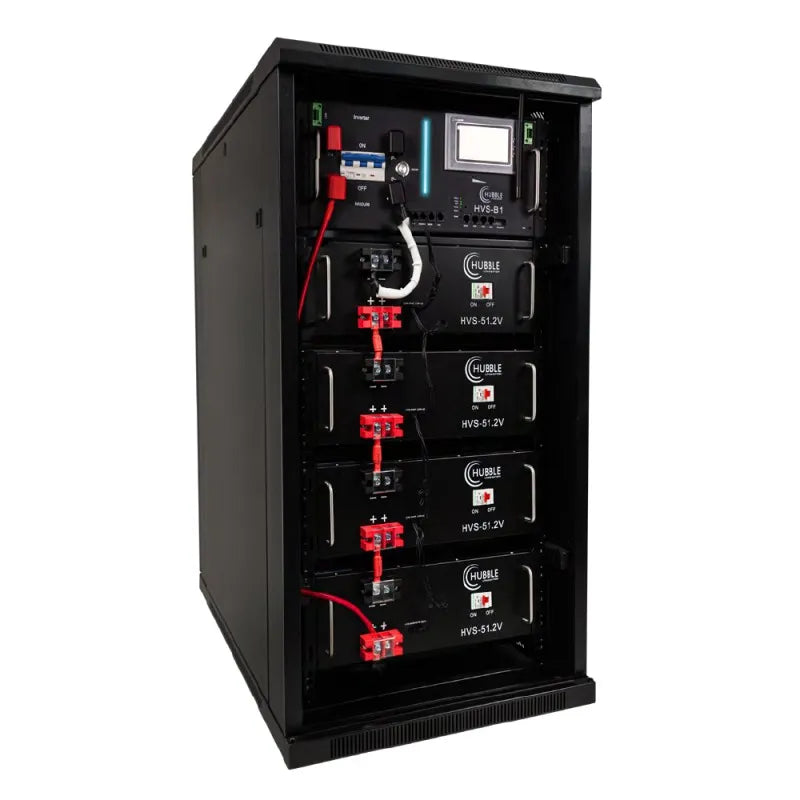

🔋 HUBBLE HV‑204 High Voltage Battery Rack (204 V / 20.4 kWh)

\nThe HUBBLE HV‑204 is a premium rack-mount high‑voltage lithium-ion battery system designed to deliver dependable, scalable energy storage for commercial and industrial applications. It consists of four modular packs, each containing sixteen prismatic LiFePO₄ cells, providing high-performance backup, load shifting, or renewable integration support. Ideal for pairing with high-voltage hybrid inverters, this compact system combines power, modularity, and advanced monitoring features. \n \n

---

\n \n

⚙️ Key Features

\n

\n
• Nominal Voltage: 204 V DC
\n
• Usable Capacity: 20.4 kWh (100 Ah at 204 V, 5‑hour rating)
\n
• High C‑Rating: 1C charge/discharge capability—up to 100 A (≈20 kW) continuous.
\n
• Modular Design: 4 packs of 16 cells each, easily rack‑mounted in a standard 22U cabinet.
\n
• Fully Compatible: Works with most high-voltage inverters via CAN-bus communication.
\n
• Expandable: Supports parallel configurations—up to 8 ESS units per string with full communication integration
\n
• Smart Monitoring: Includes an intelligent touch screen and Cloudlink for real-time monitoring and firmware updates over the internet.
\n
• Designed for Durability: 15-year service life, over 6,000 cycles at 80% Depth-of-Discharge, and ~4,000 cycles at 100% DoD.
\n

\n \n

---

\n \n

📐 Technical Specifications

\n

\n
• Rated Capacity: 100 Ah (5‑hour rate)
\n
• Voltage Cut-offs: Discharge cutoff at 179 V; equalized charging up to 223 V.
\n
• Continuous Charge/Discharge: Up to 100 A.
\n
• Depth-of-Discharge: Designed for 100% DoD, with long service life at 80% typical.
\n
• Weight: Approximately 230 kg (excluding cabinet).
\n
• Form Factor: Standard 22U cabinet measuring 1200 × 693 × 1102 mm (H × W × D).
\n
• Connectivity: 1 × CAN-bus port, 2 × Battery-Link ports.
\n
• Cells: 64 prismatic LiFePO₄ cells (16 per pack).
\n
• Certifications: CE, UN38.3, GBT31484‑2015, GBT31485‑2015, GBT31486‑2015.
\n
• Thermal Rating: Operates between 0 °C and 55 °C.
\n
• Protection Features: Includes circuit breakers per pack, over/under-voltage detection, temperature limits, and current limiting safeguards.
\n

\n \n

---

\n \n

✅ Why Choose HUBBLE HV‑204?

\n

\n
• Scalable & Modular: Start with a single rack and expand as your energy needs grow.
\n
• High Durability: Prismatic LiFePO₄ cells and robust BMS ensure long lifecycle and safety.
\n
• Smart Integration: Cloud monitoring and firmware updates streamline system management.
\n
• Reliable Performance: Suited for high-demand environments including commercial & industrial settings.
\n
• South African Support: Local support, service centres, and compatibility with widely used inverter brands
\n

\n \n

---

\n \n

🔍 Field Insights from Users

\nRack-mounted high-voltage LiFePO₄ systems like the HV‑204 typically employ a two‑tier BMS architecture: individual cell-level balancing within modules and a master BMS coordinating communication and load management across the rack via CAN-bus. Reddit users note that this ensures stable performance without manual balancing. \n \n

---

\n \n

🧾 Summary Table

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Feature	Specification
Rated Capacity	100 Ah @ 204 V (20.4 kWh)
Continuous Power	~20 kW (100 A)
Voltage Cut‑offs	179 V / 223 V
Cabinet Form Factor	22U, 1200 × 693 × 1102 mm
Weight	~230 kg (without cabinet)
Cycle Life	>6,000 @ 80% DoD, ~4,000 @ 100% DoD
Expandability	Up to 8 ESS units in parallel
Communications	CAN-bus, Battery Link, Cloud monitoring
Certifications	CE, UN38.3, GBT safety standards

\n \n

---

\n \nIn summary, the HUBBLE HV‑204 battery rack is an efficient, high-performance energy storage system built for commercial and industrial use. Its modular 22U design, smart monitoring, high cycle life, and compatibility with high-voltage inverters make it a reliable choice for demanding installations.
