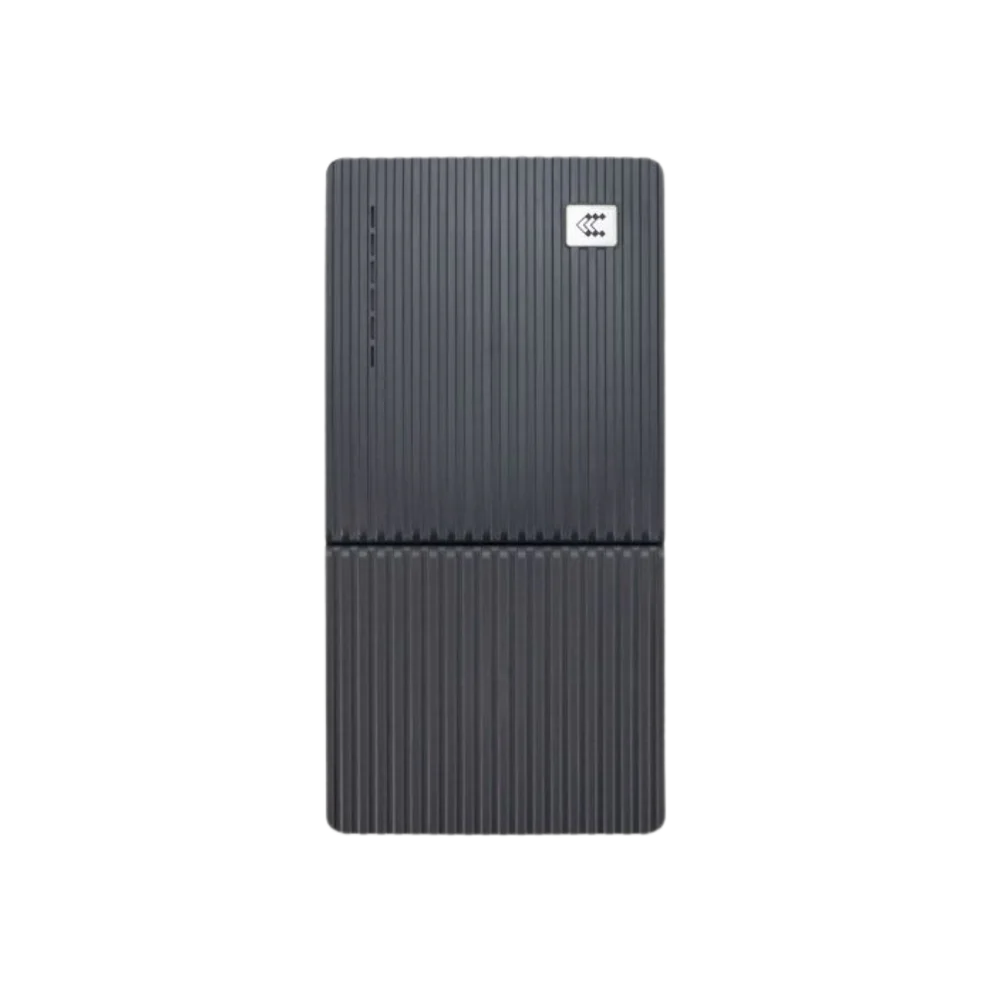

TELTONIKA TeltoCharge Charger | Up to 22kW | Dual-Phase

Fastest 3-Phase AC Charging
Ideal for commercial and business use, delivering the maximum AC charging rate at sites equipped with 3-phase power.  While the charge rate of the majority of EVs is limited to 3-phase 11kW, EVs equipped with 22kW onboard chargers can take full advantage of the station’s 22kW rating.

OCPP 1.6 Interface
Connect the station using either Ethernet, Wifi or 4G/LTE network to 3-party remote management systems for control, dynamic load balancing and billing.

Bluetooth App Control
Local management and control via Teltonika App.

RFID Card Access Control
Access to the charging station may be controlled using RFID cards.

Type 2 Socket (IEC 62196-2)
Users are required to use their own EV Charging Cable to enable charging.

Status LED
LEDs showing the status of the EV charger.

IP56 Weatherproof
Weatherproof housing ensures durability and protection against the elements.

Specifications
Certification: CE & UKCA, IEC 61851-2, REACH, RoHS
Connectivity: Bluetooth, Ethernet, Wifi 2.4 Ghz or 4G/LTE
Rating: 400 VAC, 32A 3-Phase, 22kW
Adjustable Current : 6A to 32A
Operating Temperature: -30 to +50° C
